Auto Liquid Filling Machine/Water Filling Machine/Liquid Filler

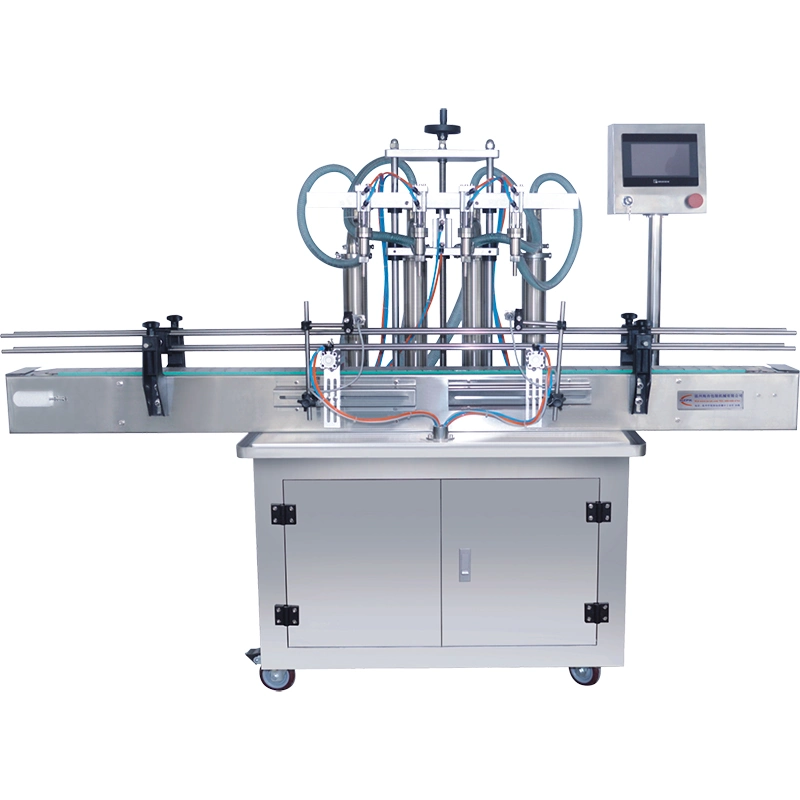

Principle: HZGY500-2/4/6/8D series liquid filling machines are of automatic piston type. There are 2, 4, 6, 8 heads to choose for this filling machine.
The material pumped through a piston which is driven by a cylinder and the flow direction is controlled by a three way control valve. The cylinder stroke is controlled by a signal valve and the filling amount can be adjusted by a hand wheel.
Property: This filling machine is produced on the basis of further transformation and innovation of of our own filling machines as well introducing advanced foreign technology. In terms of the updated structure, It is easier to oprate, more efficient and the accuracy is higher.
This filling machine is mainly used for liquid which is of low consistence.
Principle: HZGY500-2/4/6/8D series liquid filling machines are of automatic piston type. There are 2, 4, 6, 8 heads to choose for this filling machine.
The material pumped through a piston which is driven by a cylinder and the flow direction is controlled by a three way control valve. The cylinder stroke is controlled by a signal valve and the filling amount can be adjusted by a hand wheel.
Property: This filling machine is produced on the basis of further transformation and innovation of of our own filling machines as well introducing advanced foreign technology. In terms of the updated structure, It is easier to oprate, more efficient and the accuracy is higher.
This filling machine is mainly used for liquid which is of low consistence.
| Technical Parameters | Items | Parameters | |
| Voltage | 220V±5V, 110V±5V | ||
| Current | 1A | ||
| Power | 1.5kW | ||
| Air Pressure | 0.4-06MPa | ||
| Filling Speed | 10-60Bottles/min | ||
| Filling Accuracy | ±0.5%-±1% | ||
| Machine Size | 2000L*1050W*1600Hmm | ||
| Type | Model | Filling Range (mL) | Preferred Filling Range (mL) |
| 100 | 5-100 | 10-100 | |
| 300 | 30-300 | 100-300 | |
| 500 | 50-500 | 200-500 | |
| 1000 | 80-1000 | 300-1000 | |
| 2500 | 500-2500 | 1000-2500 | |
| 5000 | 1500-5000 | 2000-5000 | |
