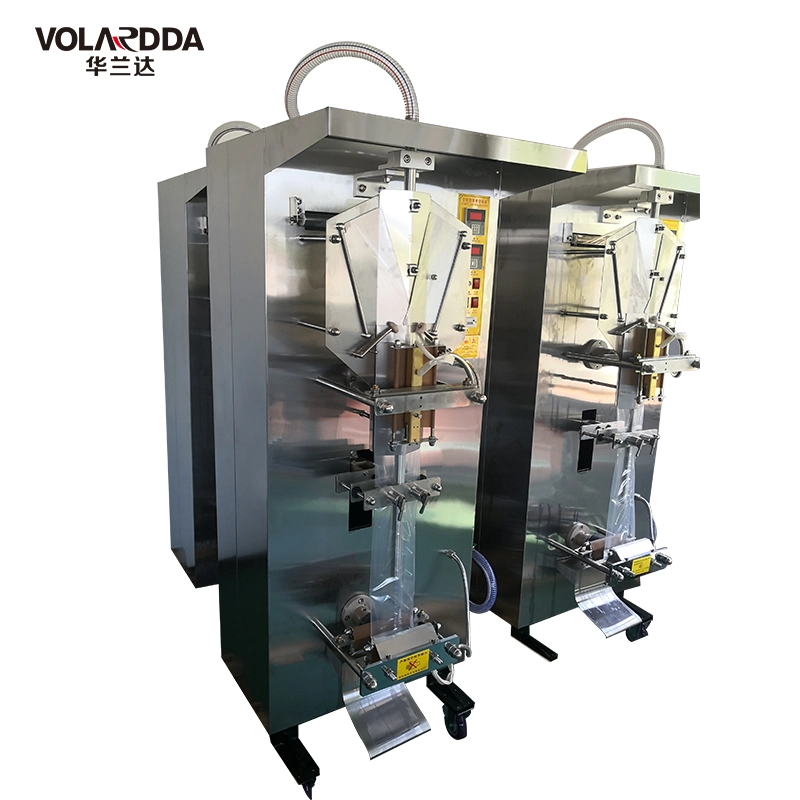

This machine is high precision packing machine and the most advanced liquid compound packing machine in china, which is standing, three side sealing and intermittent. It can automatically complete Bag-making, filling, sealing, printing, cutting and counting .Controlled by microprocessor and automatic photocell. It is widely used to pack all kinds of liquid without gas, especially soy, wine, vinegar, juice, soybean milk, peanut oil, vegetable oil, plant oil, mineral water and liquid chemical products. It is automatic for ultraviolet radiation, sterilizing bag forming, code printing precisely filling, and synchronization with sealing and cutting. This series machines have been long-tested, and their performance gained a very high reputation from our clients because of the simple operation and smooth work with low failure rate.
- Film bag automatic molding
- UV sterilization
- Automatic longitudinal sealing
- Automatic marking function
- Adjustable quantitative filling
- Automatic transverse heat sealing
- Automatically cut bags and provide a variety of incision options
- Low viscosity fluid material circulation system
1. After use, wash away residual liquid in the pipe with water. Otherwise the residual liquid will be degenerative and affect the quality of product of next production. Remove plastic pipe transfusion and clean it with a brush. Keep it clean and dry.
2. Regularly check moving parts and oiling state and oil the machine with sufficient 20# lubricant or lithium based grease at any time. Otherwise the operation will be out of order and that will severely affect service life of machine.
3. Regularly check the machine and clean away foreign matters on the surface of transverse copper block. It is not allowed to have encrustation on the surface. Otherwise thermal conductivity will be reduced, the temperature of copper will rise, and hot transverse sealing and thermal cutting bag will be out of order.
4. In the case of finding abnormal phenomena, cut off power supply immediately. Restart after troubleshooting.
5. During production in winter with temperature under 0 degree, unfreeze the ice in quantitative pump and the pipes with hot water. Otherwise, connecting rod will be broken or the machine does not work.
6. Single sheet plastic film for the machine should be 80mm thick. The tension strength, even thickness, and lubricating property of film should be guaranteed. The weight of each roll of plastic should be controlled under 18kg (320mm) or 14kg (240mm). Transverse hot sealing temperature should be under 260 degrees. Poor thermal sealing or high failure rate of bag caused by employing single sheet plastic film not recommended by the manufacturer are not within extent of liability borne by the manufacture. Are not within extent of liability borne by the manufacture.
This machine is widely used in packaging milk, soy milk, sauce, vinegar, rice wine and various liquids, the whole packaging process: film sterilization, bag making, printing date, filling, sealing, cutting, counting can be completed at one time.The heat seal temperature can be controlled automatically.The package is exquisite, smooth and adopts stainless steel structure to meet the sanitary requirements.
| model | HLD-1000 |
| Length of finished bag (mm) | 50-150 |
| Bag width (mm) | 40-150 |
| Packaging film width (mm) | 100-320 |
| Packing capacity (ml) | 50-500 |
| Packing speed (bag/h) | 2000-2200 |
| Power (kw) | 1.6 |
| Dimensions (mm) | 880* 760* 1800 |
| Whole machine weigh (kg) | 275 |
