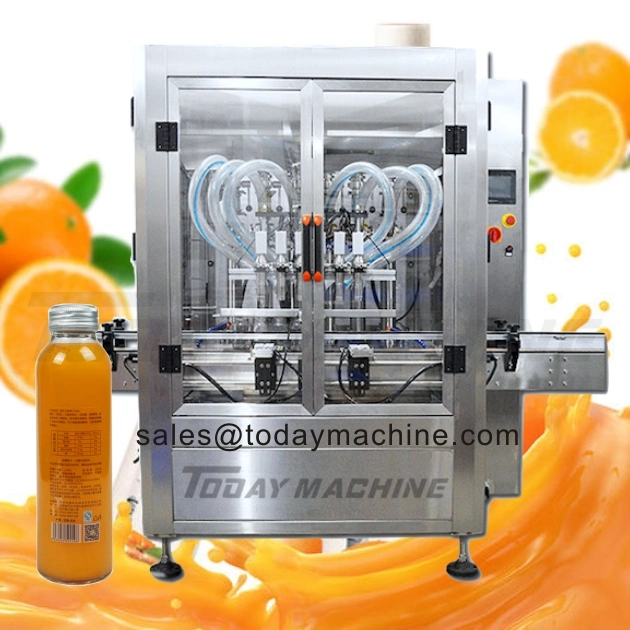

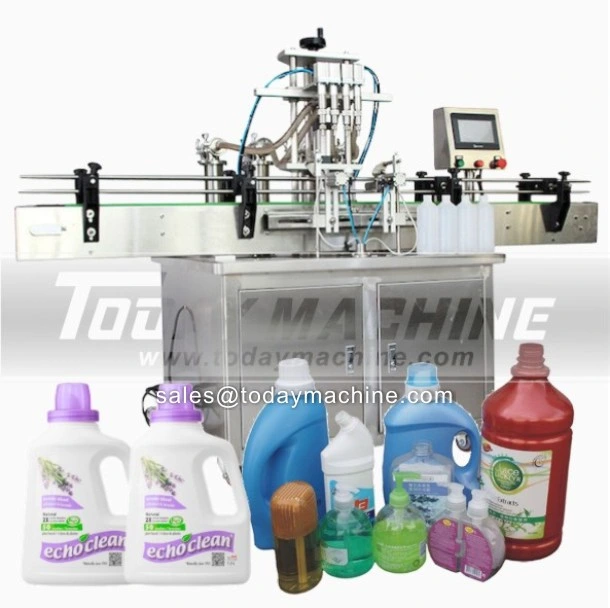

Automatic Bottle Liquid/Paste/Oil Filling Machine with Conveying Line
For Honey, Hand Sanitizer, shower gel, detergent liquid, shampoo, beer, ketchup, oil, etc.
Application
Product: Liquid, gel, paste, oil, cream …
Container: plastic/glass bottle of round/square/special/hexagon…
Functions
Measure pump is piston measure pump, then the piston through across in the pump up-side and down-side movement to-and-fro.
After bottles in right position, the filling head will move up and down at the same time and enter into the bottle for filling
Hold the bottles complete filling for next procedures
Adopt high-strength stainless steel frame, easy disassembly and assembly, easy to clean, in line with GMP requirements.
With no bottle and no filling function, the liquid level automatically controls the feeding.
Easily adjust bottles of various shapes and specifications without replacing parts.
The filling head is equipped with a special leak-proof device, and there is no drawing or dripping in the filling.
Technical parameters
Model | LFL-2H | LFL-4H | LFL-6H | LF-8L | LFL-12H |
Filler head | 2 head | 4 head | 6 head | 8 head | 12 head |
Speed | 5-20 b/min | 10-20 b/min | 10-30 b/min | 15-40 b/min | 30-80 b/min |
Range | 25-250ml 50-500ml 150-1000ml 500-2500ml 2000-5000ml | 25-250ml 50-500ml 150-1000ml 500-2500ml 2000-5000ml | 25-250ml 50-500ml 150-1000ml 500-2500ml 2000-5000ml | 25-250ml 50-500ml 150-1000ml 500-2500ml 2000-5000ml | 25-250ml 50-500ml 150-1000ml 500-2500ml 2000-5000ml |
Error | Within 0.5g (when 500ml) | Within 0.5g (when 500ml) | Within 0.5g (when 500ml) | Within 0.5g (when 500ml) | Within 0.5g (when 500ml) |
Voltage | 220v/380v 50-60hz | 220v/380v 50-60hz | 220v/380v 50-60hz | 220v/380v 50-60hz | 220v/380v 50-60hz |
Air pressure | 0.5-0.6Mpa | 0.5-0.6Mpa | 0.6-1Mpa | 0.6-1Mpa | 0.6-1Mpa |
Weight | 300kg | 350kg | 350kg | 400kg | 450kg |
Dimention | 2000x10200x1800 mm | 2500x900x2200 mm | 2500x900x2200 mm | 2500x900x2200 mm | 2500x900x2200 mm |
