Main technical parameter:
Applied Bottle | 2-50 ml (Customized) |
Productive Capacity | 4000-5000 bottles per hour |
Filling Tolerance | 0-2% |
Qualified Stoppering | ≥99% |
Qualified cap putting | ≥99% |
Qualified capping | ≥99% |
Power Supply | 380V ,50HZ(can be customized) |
Power | 1.5KW |
Net Weight | 600KG |
Dimension | 2500(L)×1000(W)×1700(H)mm |
Overview:

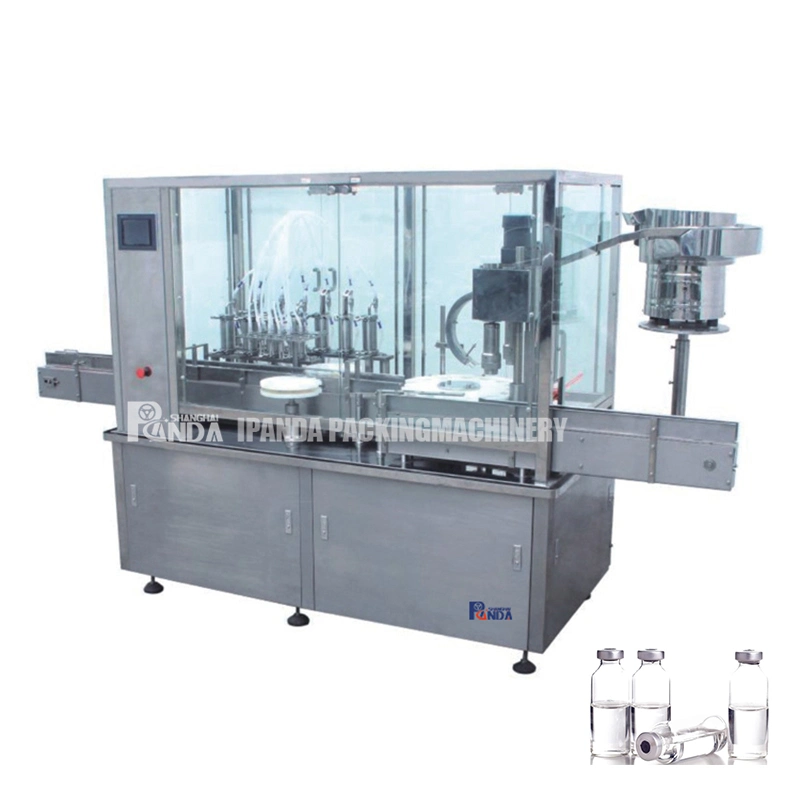

Vial Liquid Filling and Stoppering Machine is suitable for the liquid filling and rubber stoppering of glass vials. Machine complete in pleasing matt finished stainless steel construction. The basic unit consists of turntable/unscrambler, SS Stat conveyor belt, Highly efficient and precision built S.S. 316 Syringes, non- toxic synthetic rubber tubing and easy reach compact panel.
The minimal distance between filling and stoppering units reduces the risk of contamination. The machines are designed for operation in a sterile area and for use under laminar flow protection. The un-scrambler itself has been redesigned to eliminate dead ends and difficult-to-clean spots.
Features:
1.The parts which contact liquid are SUS316L stainless steel and others are SUS304 stainless steel
2.Including feeder turntable,effective cost/space saving
3.It has intuitive and convenient operation, measuring accurate, positioning precision
4.Fully in accordance with the GMP standard production and passed CE certification
5.Siemens Touch screen/PLC
6.No bottle no filling/plugging/capping
7.The machine has the advantages of novel structure, convenient maintenance and debugging, small volume, high efficiency, smooth operation, low noise and convenient adjustment. At the same time, the column on the table is equipped with a leak proof sealing ring when installed. When the machine is clean, it can be washed directly with water, and no water is allowed to enter the box body.
8.The installed capacity of this machine is stable and reliable. The imported stepping system has good reliability and strong power and is not easy to lose step.
The details pictures:
Working process:
The incoming dry vial (sterilized and siliconised) are fed through the unscrambler and suitably guided on the moving delrin slat conveyor belt at the required speed of the correct placement below filling unit. The filling unit consists of Filling Head, Syringes & Nozzles which are used for liquid filling. The syringes are made of S.S. 316 construction and both, glass as well as S.S. syringes can be used. A Star Wheel is provided which holds the vial during filling operation. A sensor is provided
1)This is filling pipes, it is high quality imported pipes.There are the valves on the pipe, it will suck liquid back after once filling.
So filling nozzles will not leakage.
2)The multi roller structure of our peristaltic pump further improves the stability and non impact of filling and makes the liquid filling stable and not easy to blister. It is especially suitable for filling the liquid with high requirement.
3)We adopt SS304/316 Filling nozzles,it's meeting with CE standard
4)This is aluminum Cap sealing head. It has three sealing roller. It will sealing Cap from four sides, so the sealed Cap is very tighten and beautiful. It will not damage Cap or leakage Cap.
Application:
Elements brands
We adopt PLC Control,Frequency converison adjusting speed,high degree automation.
Company information:
Shanghai iPanda Intelligent Machinery Co., Ltd. is committed to the equipment R&D, manufacture and trade of various types of packaging machinery. It is a high-tech enterprise integrating design, manufacture, trade , and R&D. The company's equipment R&D and manufacture team has more than 10 years of experience in the industry, accepting unique requirements from customers and providing various types of automatic or semi-automatic assembly lines for filling. Products are widely used in daily chemicals, medicine, petrochemical, foodstuff, beverage and other fields. Our products has a market in Europe, the United States and Southeast Asia, etc. won the new and old customers alike.
The talent team of Panda Intelligent Machinery gathers product experts, sales experts and after-sales service staffs, and upholds the business philosophy of "Good quality , Good service, Good prestige". We will continue to improve our own business level, expand our business scope, and strive to meet the needs of customers.
Service:
Transport:
FAQ:
Q1: Are you factory or trading company?
A: We are factory.
Q2: Can you guarantee your quality?
A: Of course. We are the manufacture factory. More importantly, we put a high value on our reputation. Best quality is our principle all the time. You can be assured on our production completely.
Q3: What should I do if we are not able to operate the machine when we receive it?
A: Operation manual and video demonstration sent along with the machine to give instructions. Besides, we have professional after-sale group to customer 's site to solve any problems.
Q4: How could I get the spares on machines?
A:We will send extra sets of easy broken spares and accessories like O ring etc. Non-artificial damaged spares will be sent freely and shipping free during 1 year's warranty.
