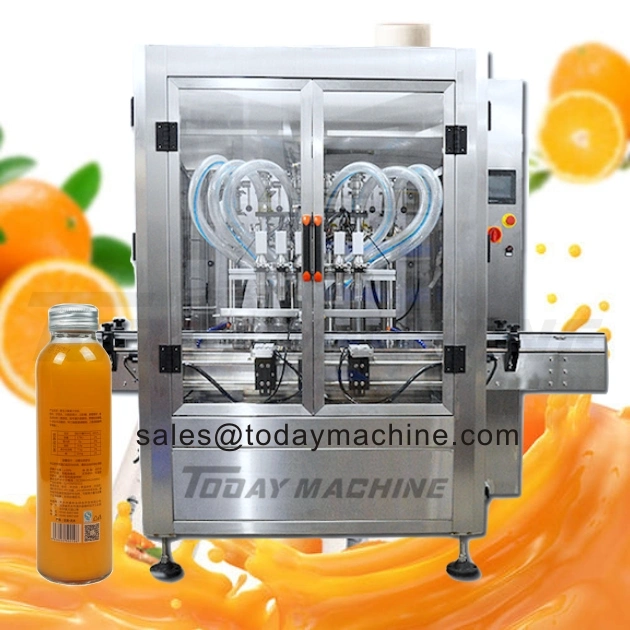

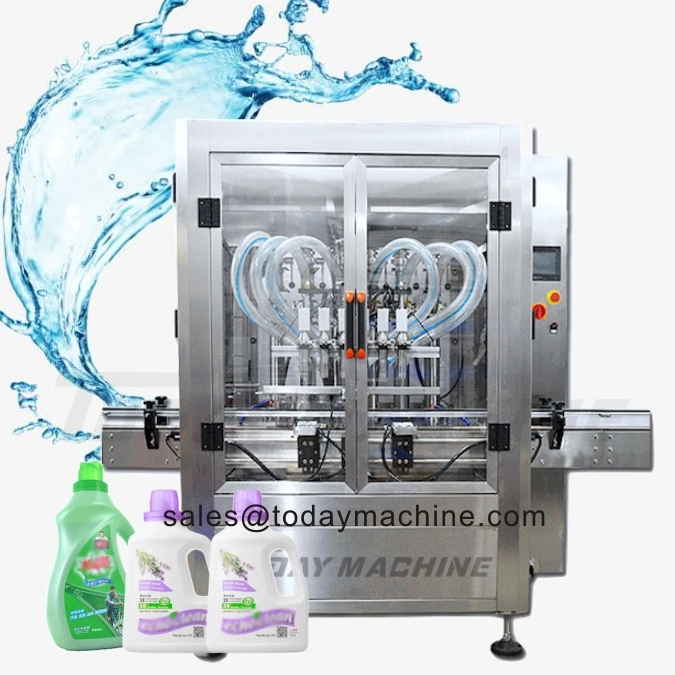

Automatic Bottle Liquid/Paste/Oil Filling Machine with Conveying Line

For Honey, Hand Sanitizer, shower gel, detergent liquid, shampoo, beer, ketchup, oil, etc.

Application

Product: Liquid, gel, paste, oil, cream …

Container: plastic/glass bottle of round/square/special/hexagon…

Functions

Measure pump is piston measure pump, then the piston through across in the pump up-side and down-side movement to-and-fro.

After bottles in right position, the filling head will move up and down at the same time and enter into the bottle for filling

Hold the bottles complete filling for next procedures

Adopt high-strength stainless steel frame, easy disassembly and assembly, easy to clean, in line with GMP requirements.

With no bottle and no filling function, the liquid level automatically controls the feeding.

Easily adjust bottles of various shapes and specifications without replacing parts.

The filling head is equipped with a special leak-proof device, and there is no drawing or dripping in the filling.

Technical parameters

ModelLFL-2HLFL-4HLFL-6HLF-8LLFL-12H
Filler head2 head4 head6 head8 head12 head
Speed5-20
b/min
10-20
b/min
10-30
b/min
15-40
b/min
30-80
b/min
Range25-250ml
50-500ml
150-1000ml
500-2500ml
2000-5000ml
25-250ml
50-500ml
150-1000ml
500-2500ml
2000-5000ml
25-250ml
50-500ml
150-1000ml
500-2500ml
2000-5000ml
25-250ml
50-500ml
150-1000ml
500-2500ml
2000-5000ml
25-250ml
50-500ml
150-1000ml
500-2500ml
2000-5000ml
ErrorWithin 0.5g
(when 500ml)
Within 0.5g
(when 500ml)
Within 0.5g
(when 500ml)
Within 0.5g
(when 500ml)
Within 0.5g
(when 500ml)
Voltage220v/380v
50-60hz
220v/380v
50-60hz
220v/380v
50-60hz
220v/380v
50-60hz
220v/380v
50-60hz
Air pressure0.5-0.6Mpa0.5-0.6Mpa0.6-1Mpa0.6-1Mpa0.6-1Mpa
Weight300kg350kg350kg400kg450kg
Dimention2000x10200x1800
mm
2500x900x2200
mm
2500x900x2200
mm
2500x900x2200
mm
2500x900x2200
mm
