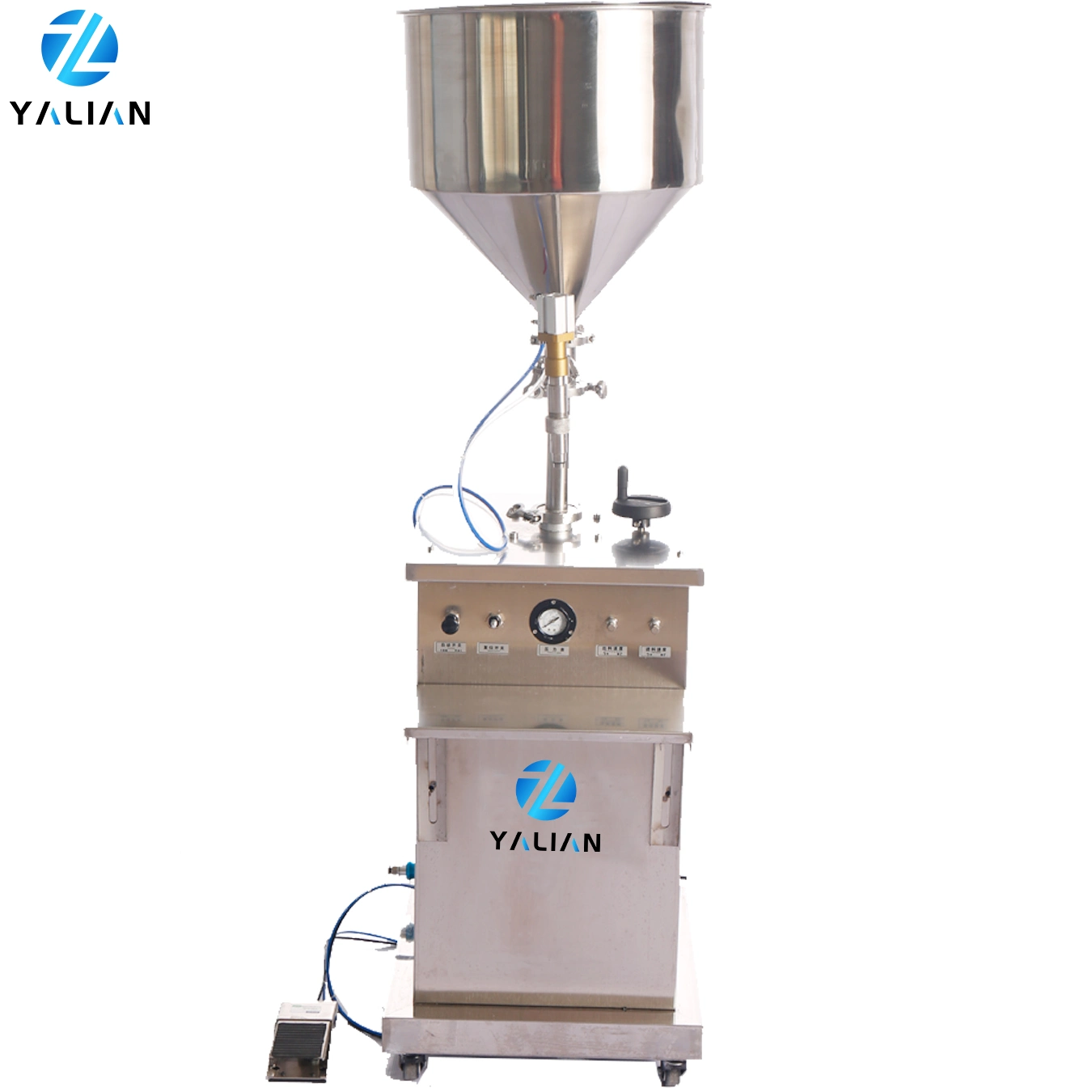

Semi auto ointment liquid jam filling machine aloe vera gel filling machine
Product descriptionSemi-automatic pneumatic paste liquid filling machine is a paste, liquid filling equipment of our latest development. The equipment is according to the domestic and foreign advanced filling machine technology to upgrade and innovation of products, pro - new horizontal design, lightweight and convenient. The equipment adopts pneumatic components (cylinder) and the piston push rod structure, since the work cylinder to form a vacuum cavity, negative pressure absorbing materials. So there can be filling viscous, poor flow ability material.
Product features
1.Control component and actuator (cylinder) are used in flat shot (Germany FESTO/ Taiwan AIRTAC, domestic SNS) element. Material contact part adopts 304 stainless steel materials, 316L. To meet the requirement of GMP
2.The use of compressed air as the power source, for the use of power, the machine is running without collision and hard friction, therefore suitable in a riot requirements occasions, has higher security
3.The constant volume metering and the piston push rod structure, filling the high precision of the equipment, small error (± 0.5%)
4.With adjustment handle of filling volume, the filling speed can be adjusted at, high filling accuracy
5.With automatic feeding, filling, uniform discharge, emergency stop, the filling quantity and speed can be adjusted utility function
6.Filling head adopts a cylinder valve or a mechanical valve, leak proof plugging head is provided with a filling head, to prevent the filling head wire drawing, dropping material
7.All parts are connected by a hoop, convenient assembly disassembly, cleaning, maintenance, assembly
8.The machine set (manual) and (automatic). (manual) by foot control filling, (automatic) is a continuous filling machine.
Technical parameter
Model | Filling volume | Filling precision | Air consumption | Air source pressure | Productivity |
YTG-1 | 5-150ML | ±0.2% | 23L/min | 0.2-0.8mpa | 20-50b/min |
YTG-2 | 10-250ML | ±0.2% | 30L/min | 0.2-0.8mpa | 20-50b/min |
YTG-3 | 30-500ML | ±0.2% | 44L/min | 0.2-0.8mpa | 20-40b/min |
YTG-4 | 100-1000ML | ±0.2% | 87L/min | 0.2-0.8mpa | 20-30b/min |
YTG-5 | 250-2500ML | ±0.2% | 160L/min | 0.4-0.8mpa | 10-25b/min |
YTG-6 | 1000-5000ML | ±0.2% | 300L/min | 0.4-0.8mpa | 5-15b/min |
Discharge/Feed Speed adjustable; Real-time display of filling air pressure; Manual/Automatic Filling Mode optional
FILLING NOZZLE
SUS316L, Filling head adopts anti-leakage device, Tight sealing
ROTARY VALVE/SELF SUCTION DEVICE
Connect with a hose, automatic suction, suitable for fluidity materials
FILLING VOLUME ADJUST
Adjust the hand wheel to set the filling volume you need
AIR SOURCE FILTER
Oil-water separator, effectively compressed air
Company
Guangzhou Yalian is a large-scale company specialized in design, manufacturing, installation and commissioning of daily chemical, chemical, food and pharmaceutical machinery, as well as water treatment equipment. With powerful technical strength, complete inspection facilities, unique and advanced technique as well as great varieties of products, the enterprise strictly implements ISO9001 standard management.
RFQ:
Q1: Are you a trading company or a manufactory?
A1: We are a manufactory, we supply the factory price with good quality, welcome to visit !
Q2: What's your guarantee or the warranty of the quality if we buy your machines?
A2: We offer you high quality machines with 1 year guarantee and supply life-long technical support.
Q3: When can I get my machine after I paid?
A3: The delivet time is based on the exact machine you confirmed.
Q4: How do you offer technical support?
A4:
1.Technical support by phone, email or MSN/Skype around the clock
2. Friendly English version manual and operation video CD disk
3. Engineer available to service machinery overseas
Q5:How do you work your after sales service?
A5:Normal machine is properly adjusted before dispatch. You will be able to use the mchines immediately. And You will be able to get free training advice towards our machine in our factory. You will also get free suggestion and consultation, technical support and service by email/fax/tel and lifetime technical support.
Q6: How about the spare parts?
A6: After we deal down all the things , we will offer you a spare parts list for your reference.
Order guide:
There are many types of filling machine,we need to know more details about your products in order that we can recommend the most suitable machine for you.Our questions as below:
1.What's your product?Please send one picture to us.
2. How many grams do you want to fill?
3.Do you have requirement of capacity?
To get more machine details pls contact Penny Whatsapp/Wechat
